Dirt bike charging and ignition system.

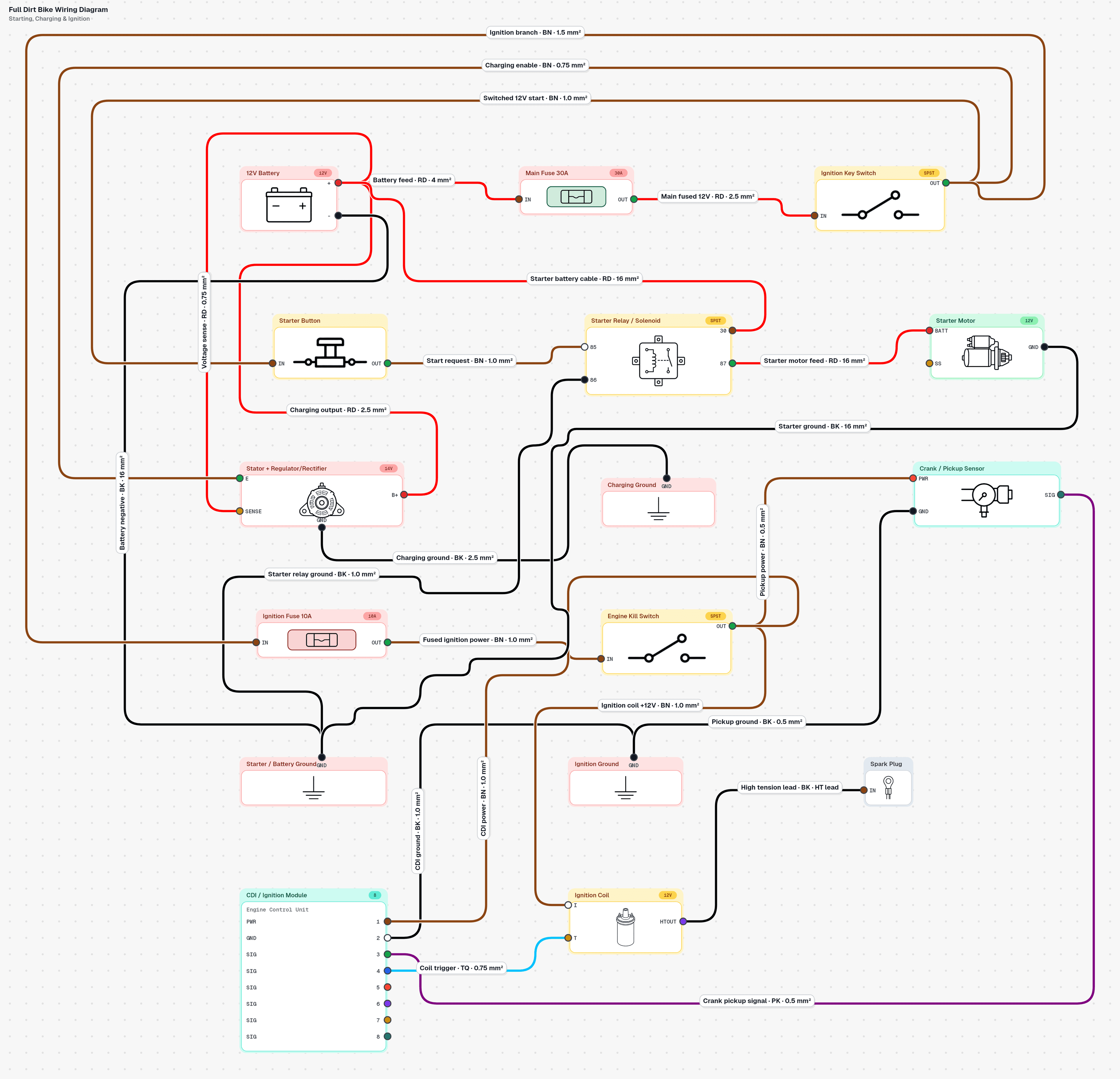

A simple dirt bike charging and ignition system including 12V battery, main and branch fuses, starter/solenoid, stator + regulator/rectifier, CDI, pickup, ignition coil/spark plug, kill switch,

Dirt bike including 12V battery, main and branch fuses, starter/solenoid, stator + regulator/rectifier, CDI, pickup, ignition coil/spark plug, kill switch,

Diagram preview

Dirt bike including 12V battery, main and branch fuses, starter/solenoid, stator + regulator/rectifier, CDI, pickup, ignition coil/spark plug, kill switch,
